5-7 Ton Diesel Forklift with Isuzu Engine
General Model 　 FD50 FD60 FD70
Power Type 　 Diesel Diesel Diesel
Rated Capacity kg 5000 6000 7000
Load Centre mm 600 600 600
Characteristic & Dimension Lift Height mm 3000 3000 3000
Fork Size L×W×T mm 1220×150×60 1220×150×60 1220×150×70
Mast Tilt Angle F/R Deg 6°/12° 6°/12° 6°/12°
Fork Overhang (Wheel center to fork face) mm 590 590 595
Ground Clearance(Bottom of mast) mm 200 200 200
Overall Dimension Length to face of fork (Without fork) mm 3450 3450 3560
Overall Width mm 2010 2010 2010
Mast Lowered Height mm 2500 2500 2500
Mast Extended Height (With backrest) mm 4380 4380 4380
Overhead Guard Height mm 2470 2470 2470
Turning Radius (Outside) mm 3250 3250 3350
Min. Intersecting Aisle mm 2960 2960 3040
Performance Speed Travel (Full load) km/h 26 26 26
Lifting (Full load) mm/s 500 500 460
Max. Gradeability % 20 20 20
Chassis Tire Front mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Rear mm 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Wheelbase mm 2250 2250 2250
Self weight kg 8550 9150 9750
Power & Transmission Battery Voltage/Capacity V/Ah (12V/80Ah)x2 (12V/80Ah)x2 (12V/80Ah)x2
Engine Model 　 6BG1
Manufacturer 　 ISUZU
Rated Output /r.p.m. kw 82.3/2000
Rated Torque /r.p.m. N·m 416/1400-1600
No. of Cylinder 　 6
Bore × Stroke L 105×125
Displacement cc 6494
Fuel Tank Capacity L 140 140 140
Transmission Type 　 Powershift Powershift Powershift
Stage FWD/RVS 　 2/2 2/2 2/2
Operating Pressure for Attachment Mpa 19 19 19
Related Products

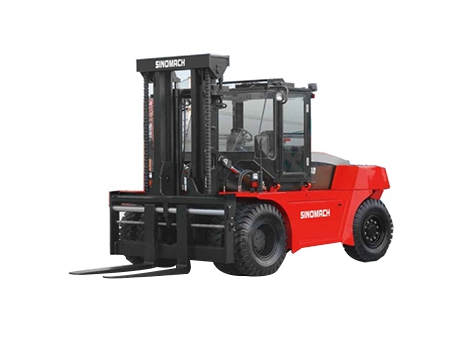

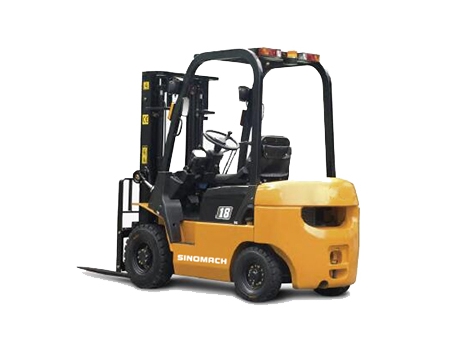

12 Ton Diesel Forklift with Dongfeng Cummins Engine 1-1.8 Ton Diesel Forklift with Isuzu Engine

 2-2.5 Ton Diesel Forklift with Isuzu Engine

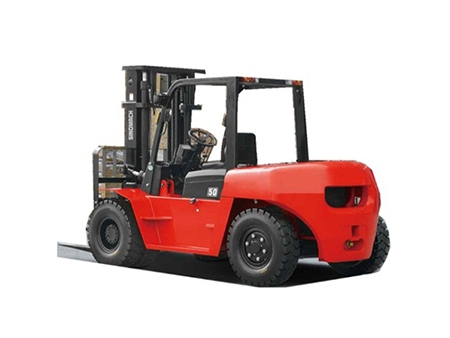

 3-3.5 Ton Diesel Forklift with Isuzu Engine 4-5 Ton Diesel Forklift with Perkins Engine 5-7 Ton Diesel Forklift with Isuzu Engine 10 Ton Diesel Forklift with Isuzu Engine
