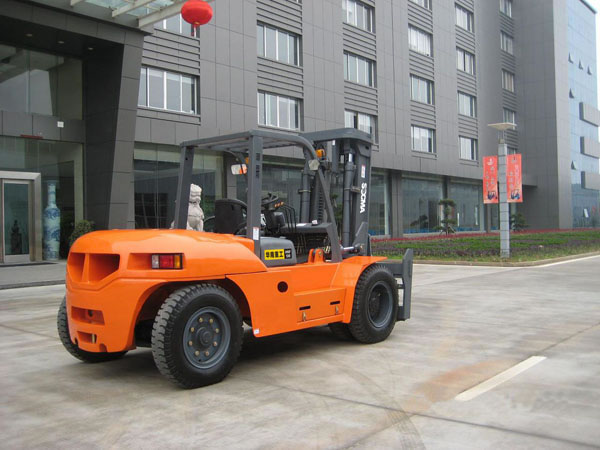

12 Ton Diesel Forklift with Dongfeng Cummins Engine 12 Ton Diesel Forklift with Dongfeng Cummins Engine
Model 　 HNF-120
Power Type 　 Diesel
Rated Capacity kg 12000
Load Centre mm 600
Max. Lifting Height mm 3000
Fork Size L×W×T mm 1220×170×80
Mast Tilt Angle F/R Deg 6°/12°
Front Overhang (Wheel center to fork face) mm 780
Ground Clearance(Bottom of mast) mm 240
Overall Dimension Length to face of fork (Without fork) mm 4450
Overall Length (with fork) mm 5800
Overall Width mm 2200
Mast Lowered Height mm 2175
Mast height mm 3300
Overhead Guard Height mm 2570
Turning Radius (Outside) mm 4200
Speed Travel (No load) km/h 30
Lifting(Full load) mm/s 290
Max. Gradeability (No load/Full load) % 20
Tire Front mm 9.00-20-14PR
Rear mm 9.00-20-14PR
Wheel Tread Front mm 1600
Rear mm 1700
Wheelbase mm 3000
Self Weight kg 13500
Battery Voltage/Capacity V/Ah (12V/80Ah)x2
Engine Model 　 6BT5.9-C130
Manufacturer 　 Dongfeng Cummins
Rated Output /r.p.m. kw 97/2200
Rated Torque /r.p.m. N·m 560/1500
No. of Cylinder 　 6
Bore × Stroke mm 102*120
Displacement L 5.9
Fuel Tank Capacity L 135
Transmission Type 　 YQXD100H4
Stage FWD/RVS 　 2/2
